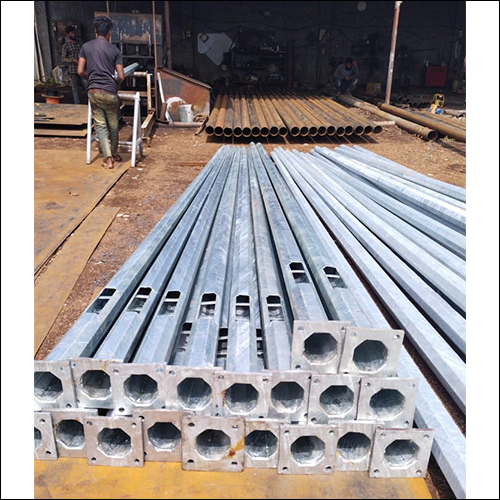

Octagonal Lighting Pole

Octagonal Lighting Pole
Octagonal Lighting Pole
Send Inquiry
Product Code : LP 04
Brand Name : METAL CRAFT INDUSTRIES
Price And Quantity
  • Minimum Order Quantity
  • 5
  • Unit of Measure
  • Pole/Poles
  • Price
  • 5000 INR
Product Description

Octagonal Lighting Pole offered by us has been fabricated using superior quality steel alloy for showing exceptional physical & mechanical characteristics. It is also provided with a coating of molten zinc on the entire surface for providing high corrosion resistance and UV stability. This pole is completely suitable to be used for society & city streets, shopping malls, car parking areas, markets, and residential societies. It is made having the flanged base for assuring secure & hassle-free installation. This Octagonal Lighting Pole can easily withstand heavy winds, rain, and high summers & winters without any structural defect.



Octagonal Lighting Pole offered by us is available in a variety of demanded sizes and specifications. Thus, we are extensive applauded as a noted Exporter, Manufacturer and Supplier of the arena.

Other details regarding Octagonal Lighting Pole:

Pole sections:

  • The Octagonal Pole is in single section (up to 14 meters) without any circumferential weld joint.
Galvanization:
  • The poles is hot dip galvanized as per the set IS 2629 / IS 2633 / IS 4759 standards with average coating thickness of 70 micron.
  • The galvanizing is done by single dipping.
Fixing Type:
  • The Octagonal Pole is bolted on pre-cast foundation with a set of four foundation bolts for greater rigidity.
Top Mountings:
  • Galvanized mounting bracket are supplied along with the Octagonal Poles for installation of the luminaries.
Manufacturing:
  • The pole manufacturing and galvanizing units are ISO 9001: 2000 & ISO 14001 certified.

Technical Specification :

Pole Height (Mtrs.)

5 Mtrs

7 Mtrs

9 Mtrs

9 Mtrs

10 mtrs

11 Mtrs

12 Mtrs

Cat. No.

HM 1105 P

HM 1107 P

HM 1109 PA

HM 1109 PB

HM 1110 P

HM 1111 P

HM 1112 P

Material of Construction

BSEN 10025

BSEN 10025

BSEN 10025

BSEN 10025

BSEN 10025

BSEN 10025

BSEN 10025

Metal Protection Treatment

H.D. Galvanised

H.D. Galvanised

H.D. Galvanised

H.D. Galvanised

H.D. Galvanised

H.D. Galvanised

H.D. Galvanised

Avg Thickness of Galvanisation

65 Microns

65 Microns

65 Microns

65 Microns

65 Microns

65 Microns

65 Microns

Thickness of Sheet

3 mm

3 mm

3 mm

3 mm

3 mm

3 mm

3 mm

Thickness of Base Plate

16 mm

16 mm

20 mm

20 mm

20 mm

20 mm

20 mm

Bottom Diameter

135 mm

150 mm

150 mm

200 mm

200 mm

200 mm

240 mm

Top Diameter

65 mm

75 mm

75 mm

100 mm

100 mm

100 mm

110 mm

Number of Foundation Bolts

4

4

4

4

4

4

4

PCD of Foundation Bolt

210 x 210 mm

240 x 240 mm

240 x 240 mm

310 x 310 mm

310 x 310 mm

310 x 310 mm

310 x 310 mm

Bolt Diameter

16 mm

16 mm

20 mm

20 mm

20 mm

20 mm

25 mm

Trade Information
  • Supply Ability
  • as per requiment Per Week
  • Delivery Time
  • 1 Week
